Roll shutter door roll forming machine

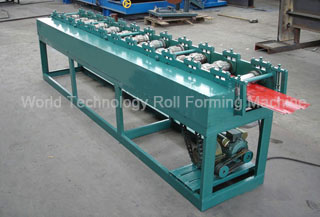

ABE-200 roll shutter door forming machine

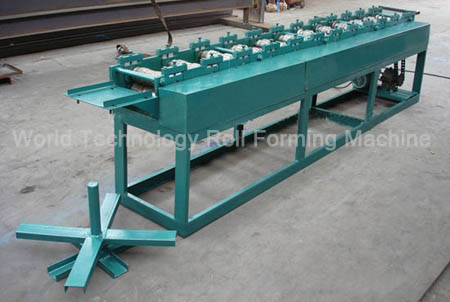

ABE-200 roll shutter door forming machine ABE-200 roll shutter door forming mill
Description of roll forming machine for shutter door:
This type of sheet can be widely used as the door of plant, storage and super market. This machine is composed of automatic discharge table, feed leading table, main forming machine, cutting device and so on.
Technical parameters of roll shutter door forming mill:
1. Install size:5000mm*800mm*1200mm
2. Rollers: 12 rows
3. Rolling material: Forging Steel 45#
4. Rolling galvanization thickness:0.05 mm
5. Material of the cutting blade :Cr12
6. Productivity: 9-10m/min
7. Electric control system: PLC vector inverter
8. Main motor power: 2.2 KW
9. Hydraulic unit power: 1.5 KW
10. Raw material thickness: 0.4-0.6mm
11. Raw material width:250mm

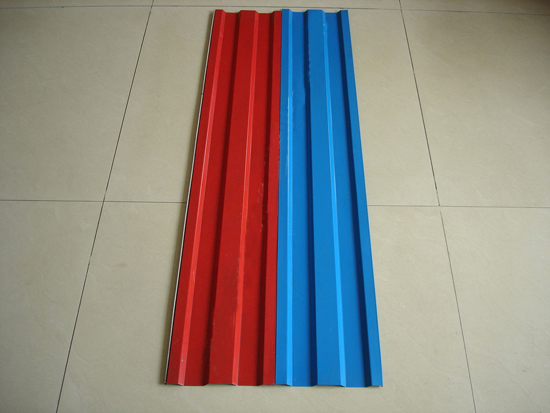

Groovy tray sample:

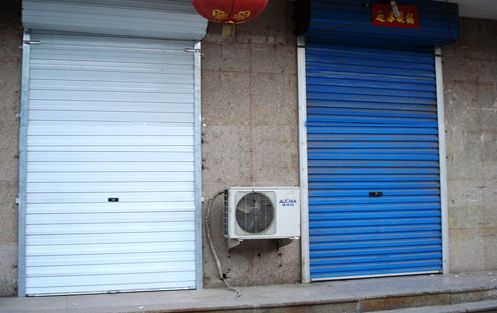

Roll shutter door for house Roll shutter door
|
 |
 |
