Roll shutter door roll forming machine
ABE-760 800 830 roll shutter door forming machine
Description of roll shutter door forming mill:
This machine is composed of automatic discharge table, feed leading table, main forming machine, cutting device, hydraulic station and computer control system. It often works with the seam machine.
This type of sheet can be widely used as the door of plant, storage and super market. Optional system are normal uncoiler and hydraulic uncoiler.
Main technical parameters of roll shutter door machine:
 |
 |
 |
ABE-760 800 830 roll shutter door forming machine
Roll Shutter Door Forming Line

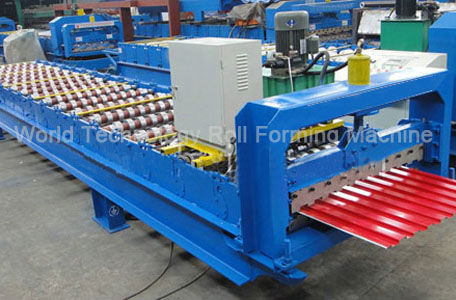

Roll Shutter Door Forming Machine

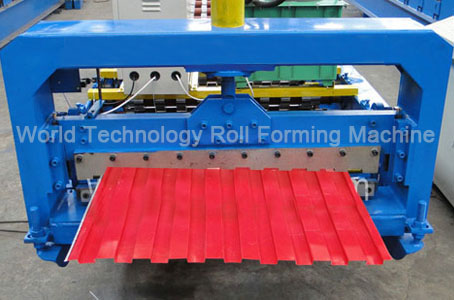

Roll Shutter Door Forming mill
Roll Shutter Door Forming Line
Roll Shutter Door Forming Machine
Roll Shutter Door Forming mill
This machine is composed of automatic discharge table, feed leading table, main forming machine, cutting device, hydraulic station and computer control system. It often works with the seam machine.
This type of sheet can be widely used as the door of plant, storage and super market. Optional system are normal uncoiler and hydraulic uncoiler.
Main technical parameters of roll shutter door machine:
1. Install size:12000mm*1800mm*1500mm
2. Rollers: 22-24 rows
3. Rolling material: Forging Steel 45#
4. Rolling galvanization thickness: 0.05 mm
5. Material of the cutting blade: Cr12
6. Productivity: 9 m/min
7. Electric control system: PLC vector inverter
8. Main motor power: 3 KW
9. Hydraulic unit power: 3 KW
10. Raw material thickness: 0.4-0.6mm
11. Raw material width:1000mm
Groovy tray sample:
Roll formed Shutter Door
Roll Shutter Door
Roll Shutter Door application
