25*2500 cut to length line

25*2500 cut to length line

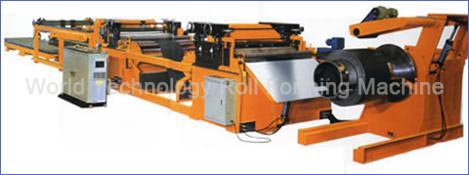

Description of the 25*2500 cut to length line:
This line consists of coil car, dual head uncoiler, hydraulic pressing & guiding, pinch device, leveler, encoder and length gauge, hydraulic shearer, feeder, pneumatic stacker, unloading car, electric system, as well as rollaway nest, steering device, etc.

Technical parameters:
Raw material: carbon steel
Coil thickness(mm): 8-25
Max coil width(mm): 2500
Cutting length range(mm): 1000-12000
Cutting length precision(mm): ±1
Leveler roller No.: 9
Roller diameter(mm): 260
