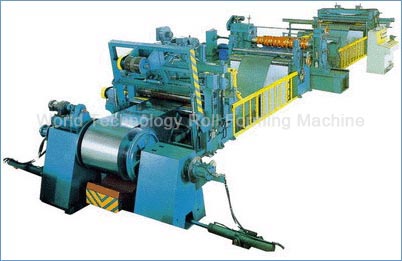

16*2200 cut to length line

16*2200 cut to length line

Description of the 16*2200 cut to length line:
This line consists of coil car, dual head uncoiler, hydraulic pressing & guiding, pinch device, leveler, encoder and length gauge, hydraulic shearer, feeder, pneumatic stacker, unloading car, electric system, as well as rollaway nest, steering device, etc.

Technical parameters:
Coil thickness(mm): 4-16
Max coil width(mm): 2200
Cutting length range(mm): 1000-12000
Cutting length precision(mm): ±1
Leveler roller No.: 11
Roller diameter(mm): 200
Line speed(m/min):0-18
Stacker capacity(T):15
Coil weight(T): 30
