10*2000 cut to length line

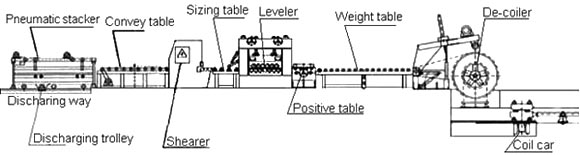

Layout of the cut to length line:

Description of the 10*2000 cut to length line:
Cut To Length Lines can do uncoiling, straightening, gauging, cross-cutting to length and stacking work. It mainly includes uncoiler, straightener, gauge, shearer, conveyor, stacker, hydraulic system, pneumatic system and electrical system, etc.
This line consists of coil car, dual head uncoiler, hydraulic pressing & guiding, pinch device, leveler, encoder and length gauge, hydraulic shearer, feeder, pneumatic stacker, unloading car, electric system, as well as rollaway nest, steering device, etc.

Technical parameters:
Coil thickness(mm): 3-10
Coil width(mm): 800-2000
Cutting length range(mm): 1000-10000
Cutting length precision(mm): ±1
Line speed(m/min):0-24
Leveling precision(mm/m2):1-3
Stacker capacity(T):15
Coil weight(T): 30
