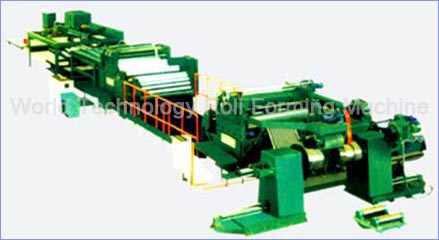

1.5*1600 cut to length line

1.5*1600 cut to length line

Description of 1.5*1600 cut to length line :
This line is broadly applied in metal plate process industry, like car, container, household appliance, packing, construction material, etc.
This line consists of coil car, dual head uncoiler, hydraulic pressing & guiding, pinch device, leveler, encoder and length gauge, hydraulic shearer, feeder, pneumatic stacker, unloading car, electric system, as well as rollaway nest, steering device, etc.

Technical parameters:
Coil thickness(mm): 0.3-1.5
Coil width(mm): 800-1600
Cutting length range(mm): 10.0-9999
Stacking length range(mm): 300-4000
Cutting length precision(mm): ±0.3
Leveling precision(mm/m2): 1-2
Leveling speed(2000mm/min): 15-18
Coil weight(T): 15
